Outline

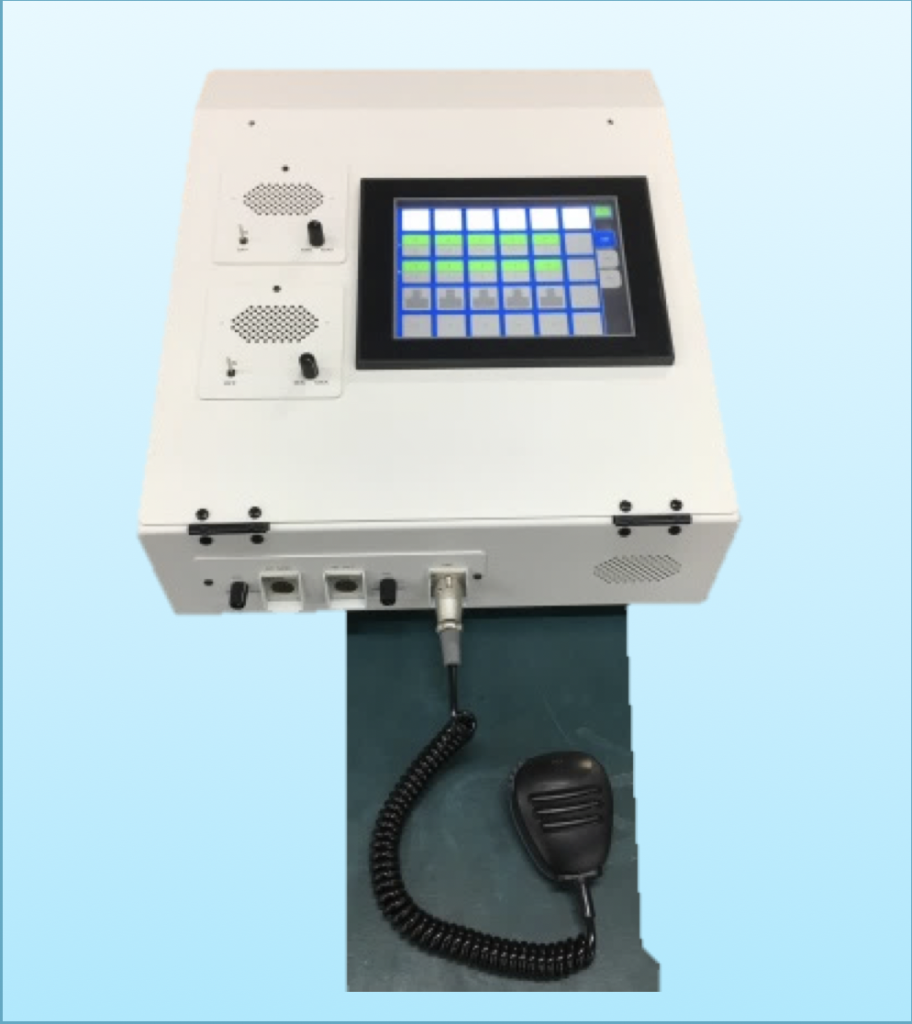

SAC-20 comprises communication desks; a Radio communication console, a dedicated telephone console, and a switch box for internal-external telephone line, radio communication and system control. The communication desk has the touch panel display which is customizable by user requirements. The radio communication console can be increased up to 2 consoles. The carriable SAC-20 can be easily moved and deployed with its storage case.

Features

• The communication desk has two configurations: a radio communication console that controls radio communication and a dedicated telephone console that controls telephone lines.


• The touch panel display on communication desk is customizable by user requirements.


• The communication desk is stored in the storage case, and the switch box is equipped with casters, making it easy to carry around.


• Up to 4 radio communication channels and 8 telephone lines can be controlled.


• The maximum length between communication desks and switch box is 100m.


• The size:
  　
  Radio communication console: 250x450x500 (mm),Dedicated telephone console: 250x450x500 (mm),Switch box: 650x650x650 (mm)
