RD-08AC GPS Sounding System

Outline

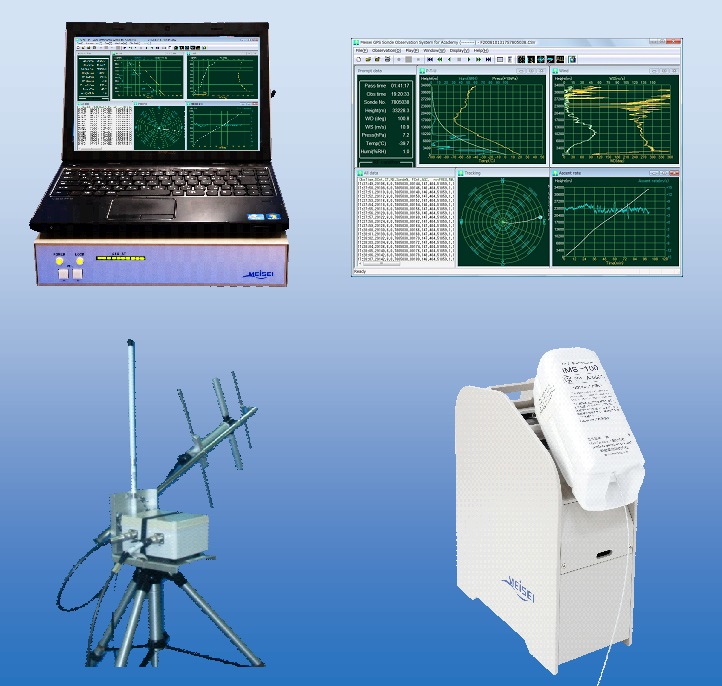

RD-08AC GPS Sounding System

GPS Radiosonde Sounding System RD-08, Full code correlating GPS radiosonde ground station ensures capturing reliable and accurate Upper-air weather.

This lightweight and compact sounding system is intended for increased portability and conveniences in sounding. Your sounding experiences will be extended more than ever.

The corresponding GPS radiosonde, RS-11G carries a temperature sensor and humidity sensor. Pressure is calculated from the GPS altitude measured by single point positioning. Sounding duration lasts 180 minutes, allowing vast stretches of sounding possibilities. Abundant choices of interfaces expand the use of supplemental sensors.

Features


    GPS Receiver : RD-08AC
  • Excellent Design for WMO sounding purpose & Research Purposes
  • Selected Design intended for sounding under CIMO guide, research purposes.


  • Sounding Anytime, Anywhere!
  • A4 size receiver with 2 kg (4.4 lb) weight

  • 110 to 240 VDC power supply for worldwide use

  • Only 30-minute preparation time with antenna assembly included


  • Sounding Emergency Proof
  • Safety function for sudden shut down of PC: audio data reproduction function enables data restoration


  • GPS Radiosonde : RS-11G
  • Improved temperature and humidity sensor with highest accuracy for the Upper-air soundings

  • One lithium battery enabling 3 hours sounding approximately and easy operation

  • GPM by SBAS method GPS positioning

  • Precise time synchronization between temperature / humidity data and GPS data

  • High stability of the ETSI certified transmitter (EN 302 054 V1.1.1)

  • Compact and low-density design, total weight of 85g including batteries, reducing the shocks at the time of falling to the ground

  • An input to a 16bit A/D 6ch and Serial input converter facilitating to connect special sensors; for ECC, CO2, OPC, FLASH, Cloud particle, etc.
